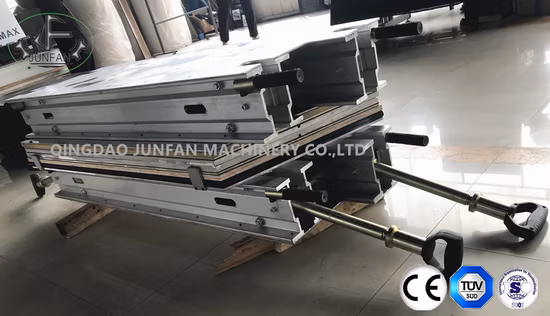

New Type Whole Beam Conveyor Belts Splicing Vulcanizing Press
Basic Info.
| Model NO. | ZLJ-1000*1000 |
| Structure | Horizontal |
| Material | High Strength Aluminum Alloy |
| Belt Vulcanizing Temperature | 145ºC |
| Machine Type | Heating Element Vulcanizing Machine |
| Curing Time Set Adjustable Range | 0-99 Minutes |
| Max Conveyor Belt Width | 500-3500mm |
| Heating Time | Less Than 25 Minutes |
| Working Pressure | 0~2MPa |
| After-Sales Service System | Video Technical Support |
| Application | Metallurgy, Mining, Cement, Ports, Bu |
| Function | Vulcanizing Press Machine |
| Power | 15.7kw |
| Warranty Period | 1 Year |
| Weight | 620 Kg |
| Transport Package | Wooden Box |
| Specification | 1720*1000*630mm |
| Trademark | ANTAI |
| Origin | China |
| HS Code | 84778000 |
| Production Capacity | 300 Sets/Month |
Product Description
Product Description| Place of Origin | China |
| Brand | ANTAI |
| Vulcanizer Type | Sectional presses |
| Belt Type | EP, NN, CC, PVC ,PVG, ST and other conveyor belt. |
| Belt Width | 650mm-2400mm |
| Degree of Heating Platen | 16°/17°/22°/90° |
| Voltage Option | 220V ,230V ,380V , 400V ,415V ,460V ,480V ,660V |
| Power | 6-30KW |
| Heating System | Silicon element |
| Vulcanizing Temperature | 145°C (adjustable 0-200°C) |
| Temperature Rising Time | From natural temperature to vulcanizing temp about 20-30 minutes |
| Cooling System | Water or Air |
| Cooling Time | 15-20mins |
| Pressure System | Rubber pressure bag |
| Working Pressure | 100psi/200psi |
| Certificate | CE |
| Warranty | 1 Year |
• Automatic mute pressure pumps for operating pressures above 20kg/cm2(2.0MPa).• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.• All electrical systems are CE, and UL approved.Click here for more information !!!
For price inquiry please provide the following information:
(SPANISH:Cuando pedido o consulta, pls ofrece a continuación información)
1.Heating platen width ,length and Bias angle.
2.Belt width and belt joint length.
Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush "quick connect" make smooth profile. Recessed power connections are sealed for moisture resistance.
| Material | Aluminum, silicon, wood, copper |
| Temperature | 145°C adjustable 0-200°C |
| Temperature rising time | ≤50mins |
| Heating method | Silicon element |
| Cooling time | ≤25mins |
| Cooling method | Water or Air |
| Voltage Option | 220V ,230V ,380V , 400V ,415V ,460V ,480V ,660V |
| Bias angle | 16° /17°/ 22°/ 90° |
Water/Air Pressure Bag
Signature ANTAI "Pressure Bag" uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
PRESSURE PUMP
Automatic mute pressure pump own the features as smaller size, lighter weight and high impact-resistance. Compared with the manual pump, the operating pressure can be 23kg/cm2 (2.3MPa).
COOLING SYSTEM (Option Available)
Custom "Extruded Plank" cooling system within platens is made by several cuprum pipelines, it only takes about 20mins to drop the temperature down to 60°C.
AUTOMATIC CONTROL BOX
With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.
ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:
Name | Amount |
The whole machine | 1 set |
Rubber Pressure Bag | 2 pieces |
Clamping device | 1 piece |
Electric control box | 1 set |
Power cable | 1 set |
Control cable | 1 root |
| Heating platen | 2 roots |
Water pump | 1 set |
Pressure pipe | 3 roots |
Model and Specifications
1.According to the Width of conveyor belt is divided into:500,650,800,1000,1200,1400,1600,1800, 2000,2200 (mm).
2.According to the Joint Length of conveyor belt is divided into :250,300,350,400,500,600,700,800,1000,1200(mm).
3.According to Hot plate shape: rectangular-72°, parallelogram -90°.
4.According to Voltage: 220V,380 V,440V,660V or as customized.
5.According to the cooling method can be divided into:Fast water cooling type and natural cooling type.
Technical Parameters (Reference)
(Except for 830 mm, 1000 mm and other conventional sizes, any non-standard size is accepted.)
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
We are the Direct Manufacturer of conveyor belt vulcanizing equipment. Our company is the direct manufacturer supplier in China for the production of the pressurized bag. ALMEX STYLE available,with lower ANTAI price.
Yes! We promise you the lowest price in China. In case of the higher price you may get from our domestic trading company Please keep in touch with me. If you need the latest catalogue of our conveyor belt vulcanizing press or have any problem about our products,please feel free to contact with me. I will do my best to provide you our professional service. FAQ Q1. What is the advantage about your company? A1. The main technology and components are developed and produced by ourselves, and have more than 15 years of experience.Q2. Why should I choose your products?A2. Factory direct sales, quality and after-sales service are guaranteed. reasonable price! Q3. Is the product the same as the description A3. Yes, the above pictures are taken from real products. Q4. Delivery date?A4. 15 working days
