25t Hydraulic Clicking Machine/Cutting Press/Swing Arm Cutting Press

Basic Info.

Model NO.	GSB-2C
Applicable Material	Rubber, Plastic, Genuine Leather, Polyester Knitted Fabric, Knitted Fabric, Denim, Velvet, Artificial Leather
Electric Parts	Omron, Schneider Brand
Type	Cutting Press
Cutting Switch	Made in Taiwan
Valve	Made in Taiwan
Transport Package	Standard Box Packaging (1100*1100*1600mm)
Specification	25T
Trademark	Greater
Origin	China
HS Code	84532000
Production Capacity	2000 PCS/Year

Product Description

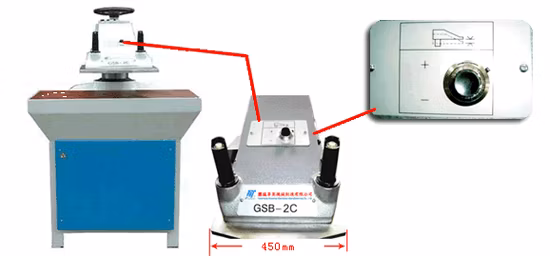

GSB-2C/25 hydraulic clicking machine
Use: It is used to scissor up plastic boards, leather, fibre, cotton fibres, paper carton and other similar materials.Features:1) Safe, two-hand trip operation; The sway arm can swing freely. Best operation line of sight;2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials; Especially suitable for shoe industry;3) Equipped with lubricating system to lessen wear and prolong service life;4) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes;5) People can adjust height of sway arm from table by simple handle, convenient, stable;6) The machine hase CE marked.

Model	GSB-2C/25
Cutting Force	25 Tons
Sway Arm Width	450× 550mm
Stroke Adjustment	5-75mm
Distance Between Upper Table And Lower Table	65-150mm
Table Area	1000× 500mm
Electrical Supply	3x440/415/400/380/220/200V, 50/60 Hz
	single phase 240/220V, 50/60 Hz
Motor Power	1.5kw
Packing Size(L× W× H)	1100× 1100× 1700mm
Weight ( Without Oil )	950Kg
Hydraulic oil (46#)	65 Liters
